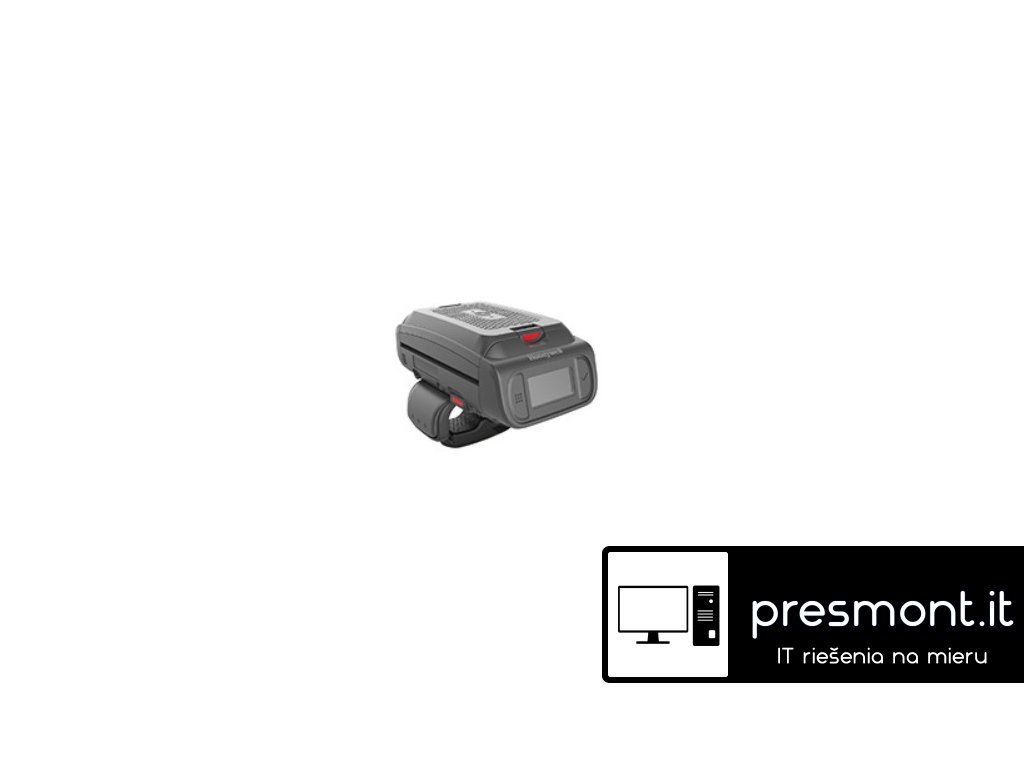

8690i Wearable Mini Mobile Computer - 2D, RFID, WiFi, battery, triggered ring, strap

Podrobný popis

RFID Standards: EPC Global Class 1 Gen 2/ISO 18000-6C Antenna: Triggered ring: *Field: Directed from top of device *Polarization: Linear polarized Glove: *Field: Directed from inside of wrist *Polarization: Linear polarized Frequency Ranges: *EU: 865-868 MHz *US: 902-928 MHz Nominal Read Range: *Internal antenna: 0.6m (2 ft) *Glove auxiliary antenna: 1m (3.3 ft) Nominal Write Range: *Internal antenna: 0.3m (1 ft) *Glove auxiliary antenna: 0.5m (1.6 ft) Output Power: Internal/external max 25dBm MECHANICAL Dimensions (L x W x H): 95.7 mm x 56 mm x 39.4 mm (3.8 in x 2.2 in x 1.6 in) Weight (Triggered Ring): 211g (7.4 oz) Scan Performance: *Scan Pattern: Omni-directional area imager *Motion Tolerance: Up to 584 cm (230 in)/second *Symbol Contrast: 20% minimum reflectance *Pitch: ±45° *Skew: ±60° Warranty: Two-year factory warranty (Note: Battery warranty is one year.) ENVIRONMENTAL Operating Temperature: -20°C to 50°C (-4°F to 122°F) Storage Temperature: -20°C to 60°C (-4°F to 14 0 °F ) Humidity: 0% to 95% relative humidity (non- condensing) Drop: 36 1.5 m (4.9 ft) drops to concrete Tumble: 2,000 0.5 meter (1.6 ft) tumbles Environmental Sealing: IP54 Light Levels: 0 to 100,000 lux ESD: ±20 kV air discharge, ±10 kV contact discharge WIRELESS Radio Range: *Bluetooth: 2.4 GHz to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth® v. 5.0: Class 1, 100 m (330ft) line of sight, NFC communications to simplify pairing with host device *Advanced Model Wi-Fi: Bluetooth above plus Wi-Fi 802.11 a/b/g/n/ac, WiFi-r fast roaming, 2.4 and 5 GHz Security Standards: WPA, WPA2, WEP, WPA2 E AP (TLS, T TLS, PE AP GTC and PEAP MSCHAPv2) Connection: Connection, Auto-reconnect, Intra Profile connection (roaming), Hidden and Broadcast SSIDs Soft Roaming: Simple and learned, across bands (all combinations of 2.4 GHz and 5 GHz), DFS Channels and 802.11 modes Opportunistic Key Caching (OKC) Battery: 3.6 V, 3400 mAh Hours of operation: Minimum 6 hour active shift with continuous RFID reading and optical scanning every 4 seconds Hot Swap Capability: Under typical conditions, device will remain operational for 100 seconds while replacing battery Expected Charge Time: *Battery charger: 3 hours Device charger: 3.5 hours
