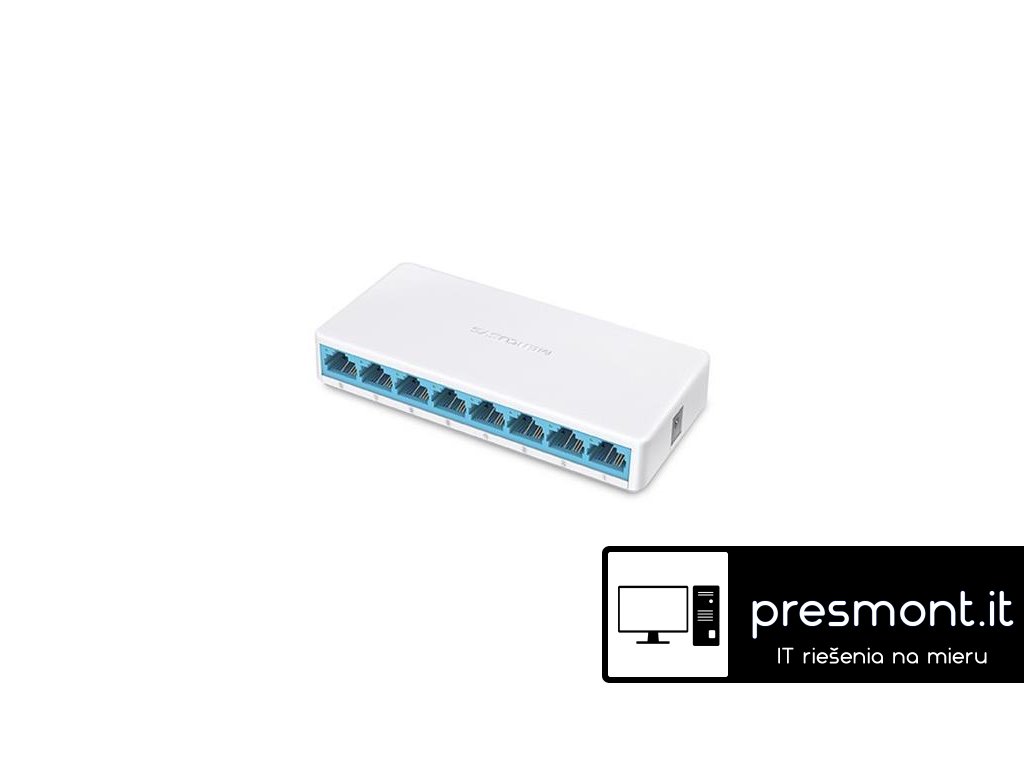

8-Port 10/100Mbps Desktop Switch SPEC: 8× 10/100 Mbps Ports, Plastic Case FEATURE: Plug and Play

Podrobný popis

8-Portový stolní switch 10/100Mb/s
MS108 v2
Osm 10/100Mbps automaticky přepínatelných RJ45 portů s podporou MDI/MDIX
Snadné připojení k síti
Kompaktní design pro flexibilní uspořádání
Nastavení Plug and play, bez nutnosti konfigurace

Environment
Operating temperature: 0°C~40°C (32°F~104°F)
Storage temperature: -40°C~70°C (-40°F~158°F)
Operating humidity: 10% ~ 90% non-condensing
Storage humidity: 5%~90% non-condensing
Dimensions (W X D X H) 127 x 60.3 x 22 mm
External Power Supply External power adapter
(Output: 5.0VDC / 0.6A)
Interfaces 8 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD
Fan Quantity Fanless
Data Rates
10/100Mbps at half duplex
20/200Mbps at full duplex
Buffer Capacity 768Kb
Jumbo Frame 2KB
Switching Capacity 1.6Gbps
LED Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power
Transfer Method Store and forward
Certifications CE, RoHS
Package Contents
8-Port 10/100Mbps Desktop Switch
MS108
Power adapter
Quick installation guide
